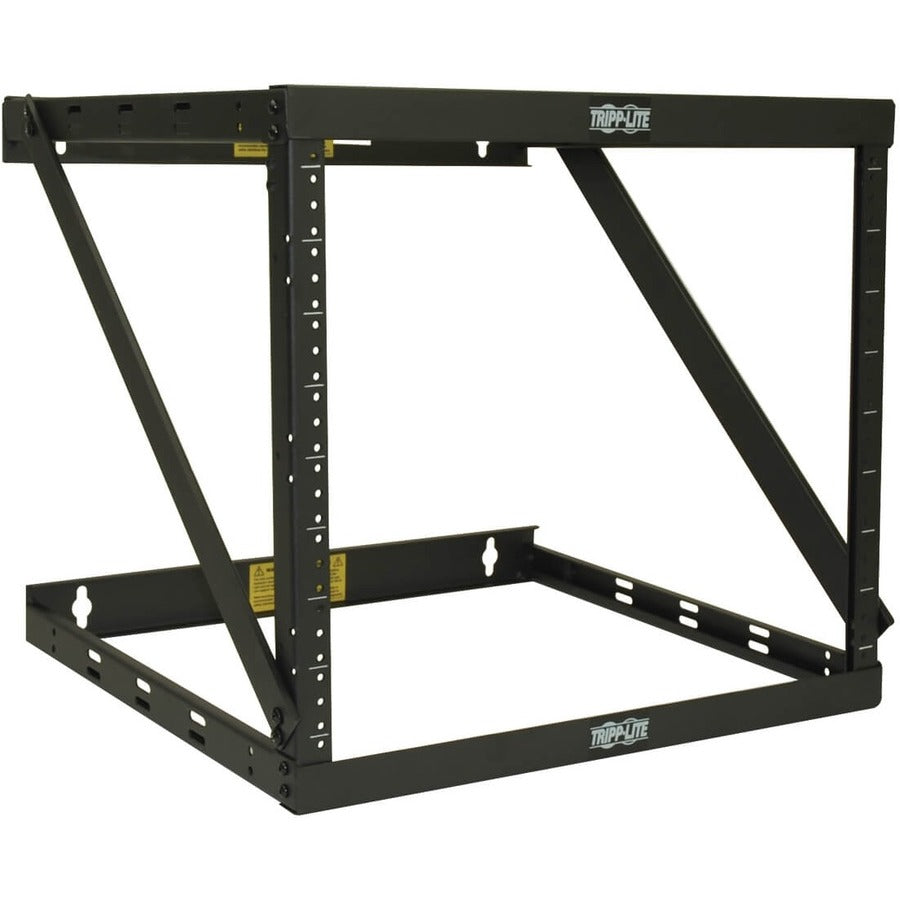

Eaton Tripp Lite by Eaton SmartRack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack

Eaton Tripp Lite by Eaton SmartRack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack

Regular price $159.99 USD
Regular price Sale price $159.99 USD
Sale Sold out
Shipping calculated at checkout.
This is just a placeholder image. Once trust badges are published from the ModeMagic app, they will start appearing instead of this placeholder
The SRWO8U22MD SmartRack 8U/12U/22U Expandable Very Low-Profile Wall-Mount 2-Post Open-Frame Rack is ideal for storing patch panels and other shallow equipment in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 11.5 inches.

Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.

The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
  • Maximum load capacity of 150 lb.
  • Secures 19 in. rack equipment up to 11.5 in. deep

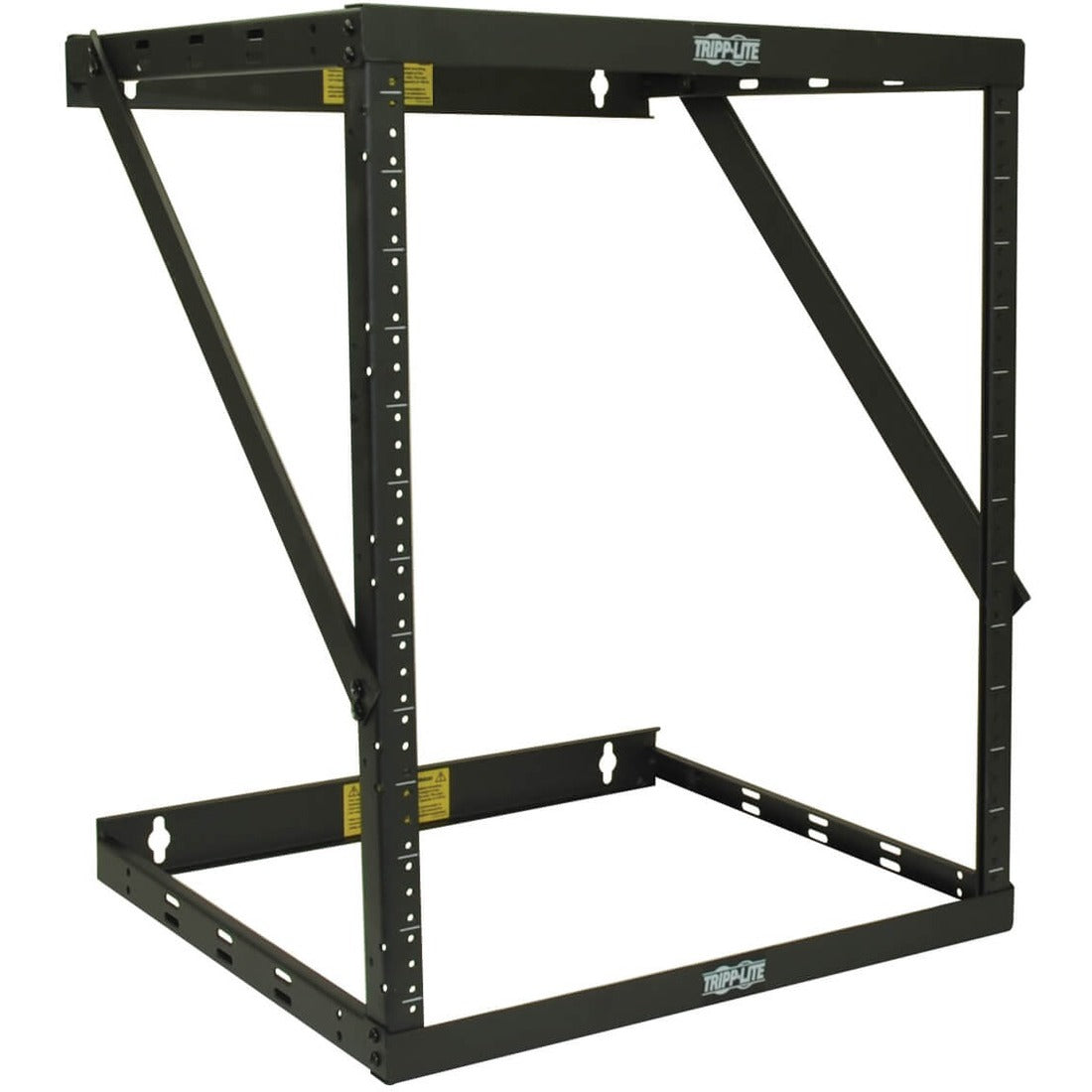

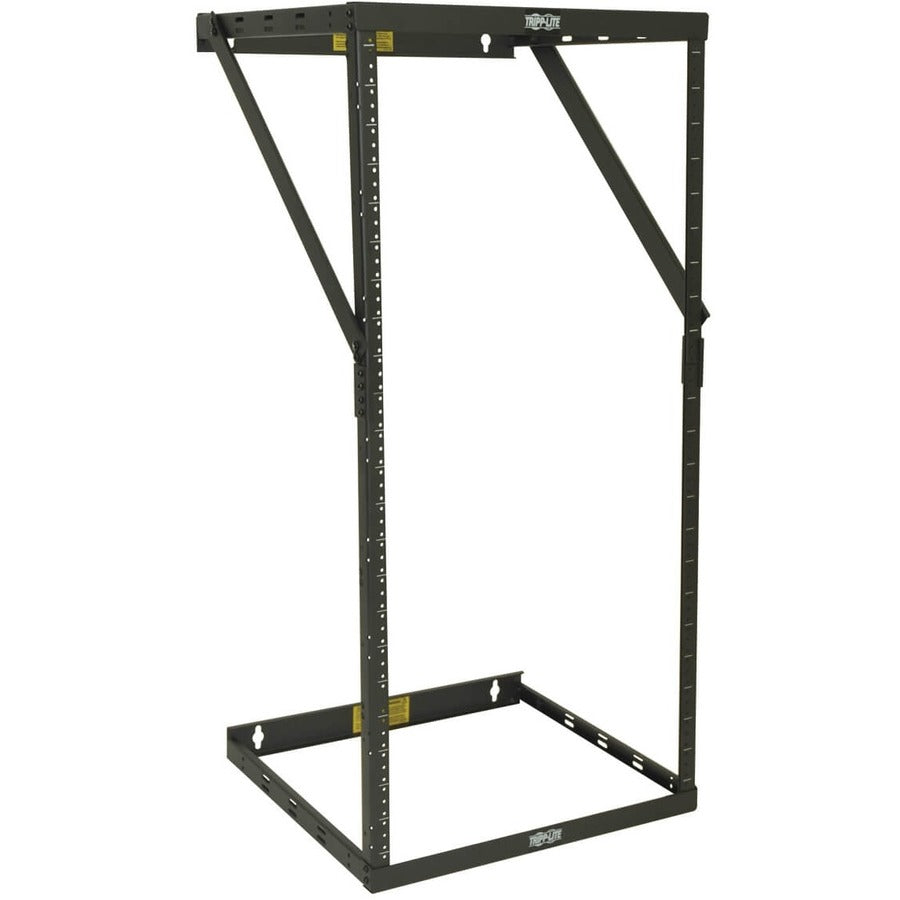

  • Configures to 8U, 12U or 22U of rack space
  • Heavy-duty steel construction designed to last
  • Easy to assemble with included hardware
Technical Information
Application/Usage Patch Panel
Package Contents
  • SmartRack SRWO8U22MD Rack Frame
  • 24 x 12-24 Equipment Mounting Screws
  • 16 x M5 Button-Head Cap Screws
  • 8 x M6 x 12 Phillips-Head Screws
  • 2 x Short Vertical Mounting Rails
  • 2 x Long Vertical Mounting Rails
  • 2 x Mounting Rail Tie Plates
  • 2 x Metal Support Straps
  • 2 x Top/bottom Panel Frames
  • 8 x Zip Ties
  • 3 mm L-Shaped Hex Key
  • Owner's Manual
Country of Origin China
Assembly Required Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
General Information
Product Type Rack Frame
Manufacturer Part Number SRWO8U22MD
Manufacturer Website Address
Manufacturer Tripp Lite by Eaton
Product Model SRWO8U22MD
Product Name SmartRack SRWO8U22MD Rack Frame
Product Line SmartRack
Brand Name Tripp Lite by Eaton
Physical Characteristics
Weight (Approximate) 10.24 lb
Form Factor Wall Mountable
Rack Width 19"
Rack Height 8U
Height 17.8"
Width 20.1"
Depth 12"
Maximum Weight Capacity 150 lb
Rack Depth 11.50"
Product Color Black Powder Coat
Color Family Other
Product Material Steel
