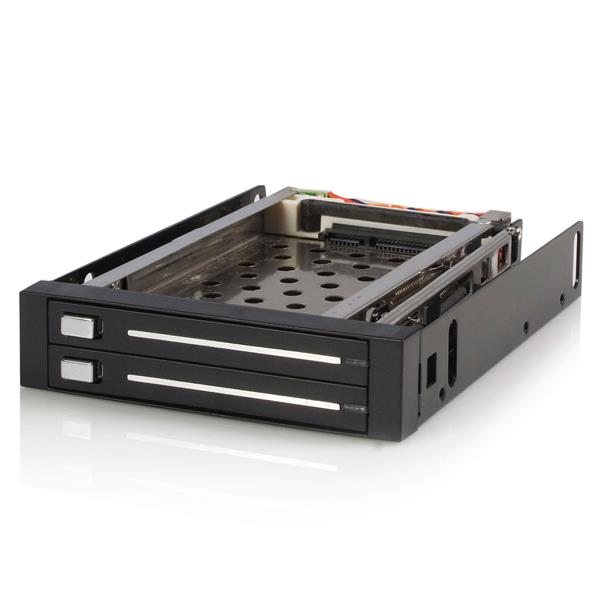

StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane

StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane

Regular price $67.99 USD
Regular price Sale price $67.99 USD
Sale Sold out
Shipping calculated at checkout.
This is just a placeholder image. Once trust badges are published from the ModeMagic app, they will start appearing instead of this placeholder

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.

Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay

  • Holds up to two SATA drives in a single 3.5" bay
  • Trayless design: drives are not mounted into separate trays/enclosures
  • Includes a plastic protective film for the bottom side of hard drive
  • Aluminum construction
  • 50,000+ insertion rating
  • Power/Activity LED for each drive
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Plug-and-Play and Hot-Swap compatible

Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design

Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay

Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

Applications

  • IT environments where you just need to quickly insert/replace removable hard drives/solid state drives
  • Imaging - For System Builders or configuring new systems - Use Hot Swap Bay in master system to copy Windows OS quickly to blank hard drive as part of system building process
  • Ideal for RAID applications (with RAID supported SATA controller)

Features

  • Holds up to two SATA drives in a single 3.5" bay
  • Trayless design: drives are not mounted into separate trays/enclosures
  • Includes a plastic protective film for the bottom side of hard drive
  • Aluminum construction
  • 50,000+ insertion rating
  • Power/Activity LED for each drive
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Plug-and-Play and Hot-Swap compatible
Controllers
Controller Type Serial ATA
Network & Communication
Wireless LAN No
Warranty
Limited Warranty 2 Year
I/O Expansions
Number of Total Expansion Bays 2
Number of 2.5" Bays 2
Interfaces/Ports
Host Interface Serial ATA/600
Drive Interface SATA/600
Technical Information
Number of Hard Drives Supported 2
Number of Hard Drives Installed No
Number of Solid State Drive Supported 2
Number of Solid State Drive Installed No
General Information
Product Type Drive Enclosure
Manufacturer Part Number HSB220SAT25B
Manufacturer Website Address http://www.startech.com
Packaged Quantity 1
Manufacturer StarTech.com
Product Name 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
Brand Name StarTech.com
Miscellaneous
Additional Information
  • Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
  • Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

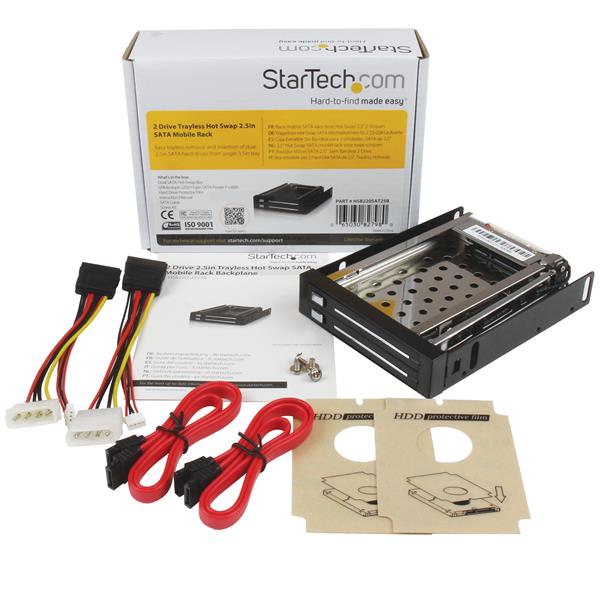

Package Contents
  • 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
  • 2 x Lp4 To SATA And LED Adapter Cable
  • 1 x 15-Pin SATA Power And LED Y Cable
  • 2 x 7-Pin SATA Data Cable
  • 2 x Hard Drive Protector Film
  • 1 x Screw Kit
  • 1 x Instruction Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
Weight (Approximate) 10.10 oz
Form Factor Internal
Height 0.9"
Width 4"
Depth 5.3"
Compatible Drive Bay Width 3.5"
Product Color Black
Product Material Aluminum
